IEC C7 Figure-8 Connector
Model CPT-07 / CPT-07W / CPT-07C · IEC Connectors
CCCVDEETLPSEKC

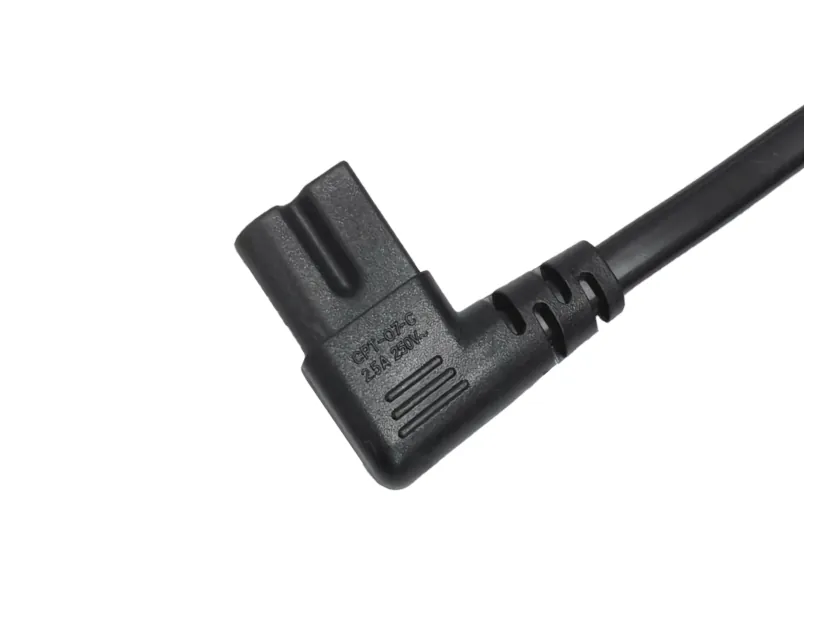

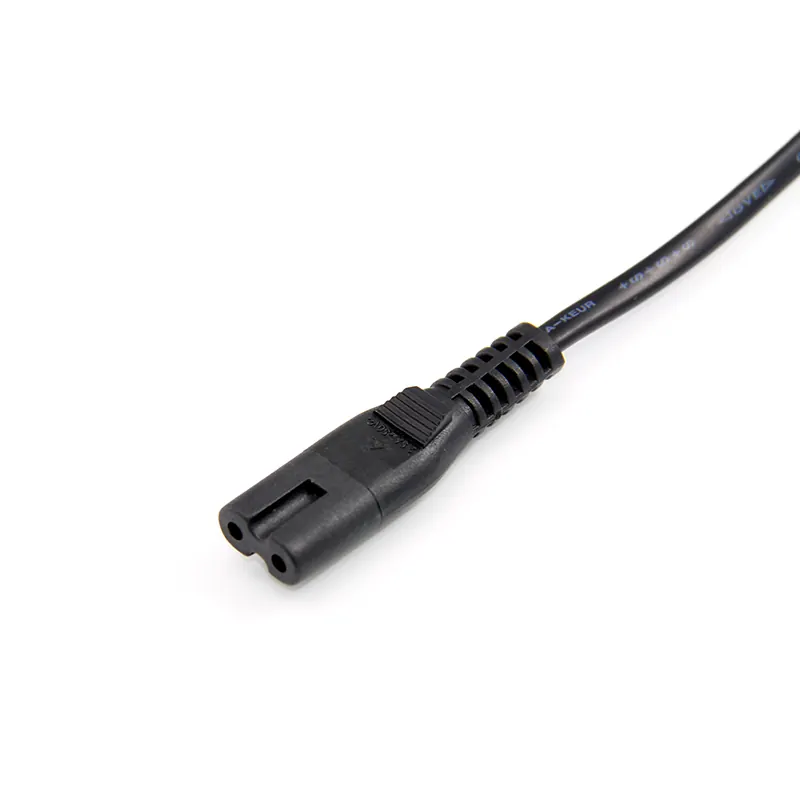

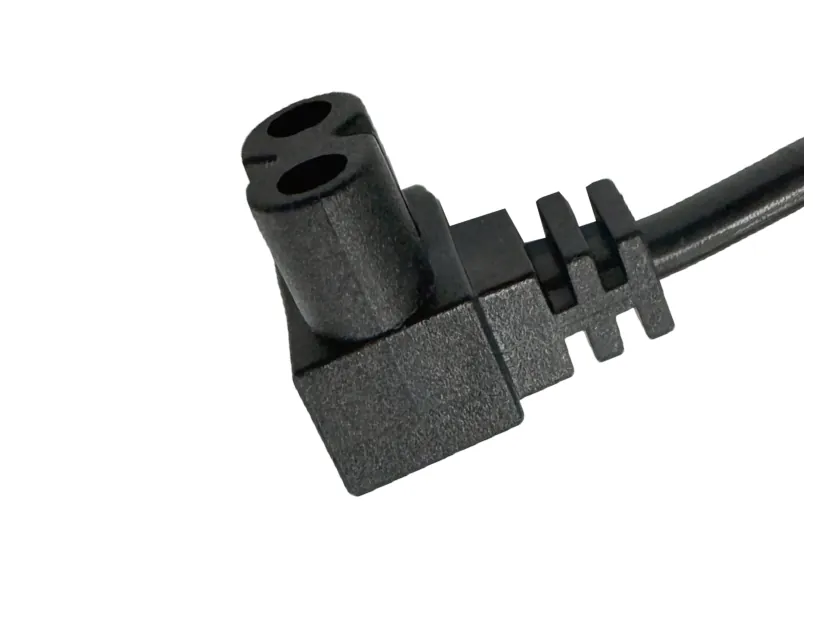

Two-pole figure-8 connector for audio-video equipment, game consoles and Class II adapters, in straight (CPT-07), side-angle (CPT-07W) and right-angle (CPT-07C) versions. Mates with a C8 inlet.
Specifications
| Model | CPT-07 / CPT-07W / CPT-07C |
|---|---|
| Standard | IEC 60320 C7 |
| Rated voltage | 250 V |
| Rated current | 2.5 A |
| Markets | Global |
| Approvals | CCC, VDE, ETL, PSE, KC |
Cable options
- 60227 IEC 52 (RVV) 2×0.5 / 2×0.75 mm² flat, 70 °C 300/300 V
- 60227 IEC 53 (RVV) 2×0.75 mm² flat, 70 °C 300/500 V
Approval scope and cable options differ by model. Tell us the destination market and we will confirm the exact certificate and configuration. Custom length, colour, moulded logo, labels and packaging are available.
