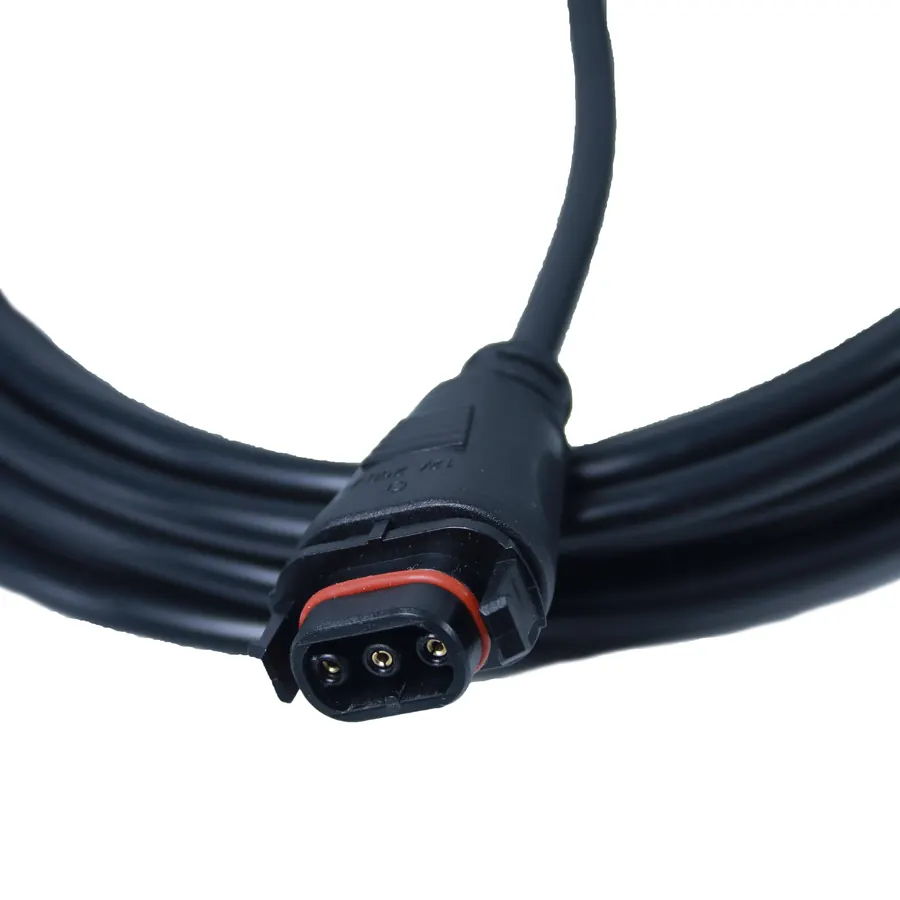

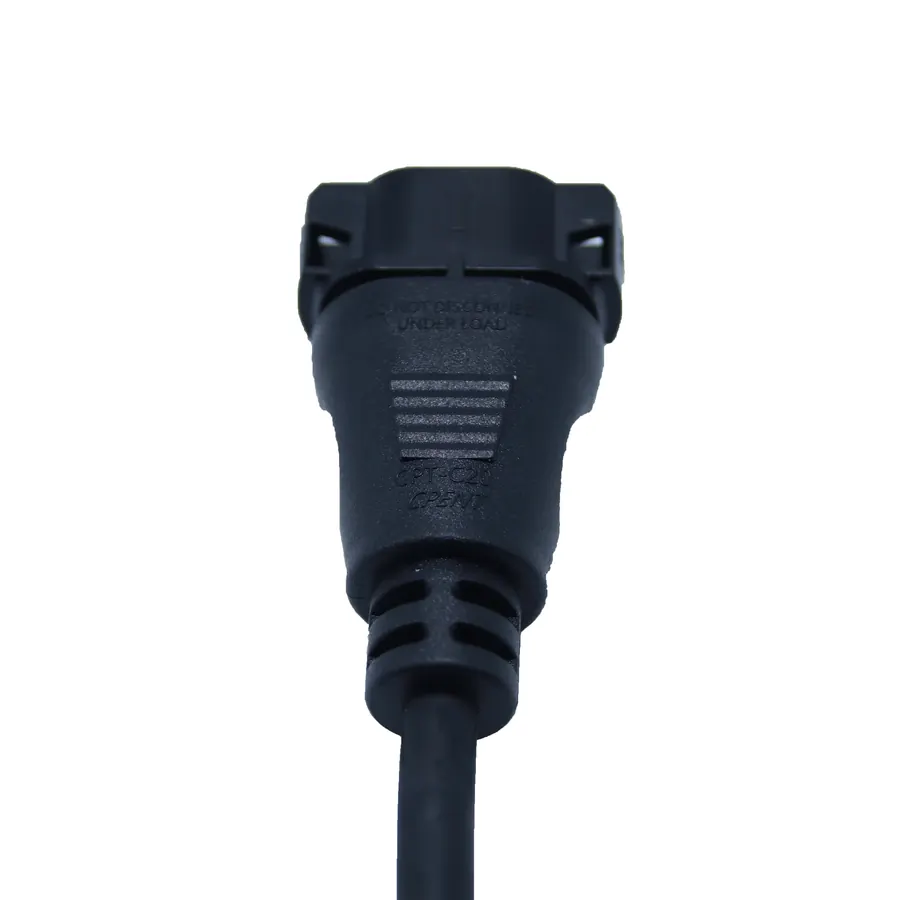

C20 Pre-Moulded Waterproof AC Connector (12 A, IP68)
Model CPT-C20 · Solar & Waterproof
Pre-moulded 12 A AC connector for micro-inverter output and trunk cables, locked by a latch that opens with the dedicated C20 release tool.
Specifications
| Model | CPT-C20 |
|---|---|
| Standard | Manufacturer standard PPP59015A |
| Rated voltage | 300 V |
| Rated current | 12 A |
| Markets | Global |
| Poles | 2P+E |
| Contact resistance | ≤ 0.5 mΩ |
| Power-frequency withstand | 4000 V AC |
| Ingress protection (mated) | IP67 / IP68 |
| Flammability | UL94 V-0 |
| Ambient temperature | −40 °C to +85 °C |
| Wire range | 0.75–1.5 mm² / 18–14 AWG |
| Housing | PVC + PA |
| Contacts | Brass, nickel-plated |

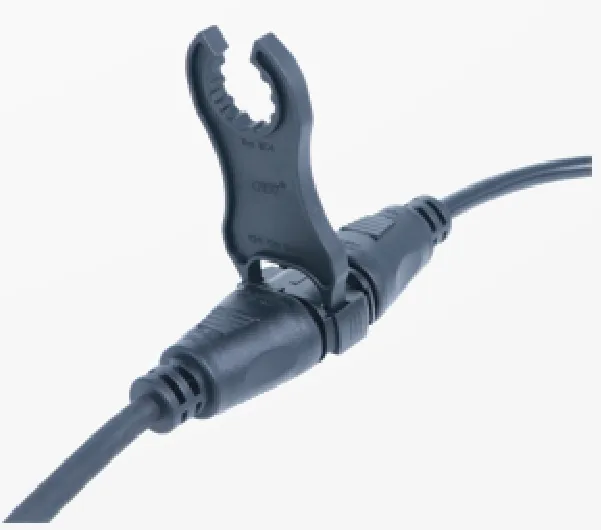

| Accessory | C20 release (unlocking) tool |
| Approvals | On request for your market |
Approval scope and cable options differ by model. Tell us the destination market and we will confirm the exact certificate and configuration. Custom length, colour, moulded logo, labels and packaging are available.
