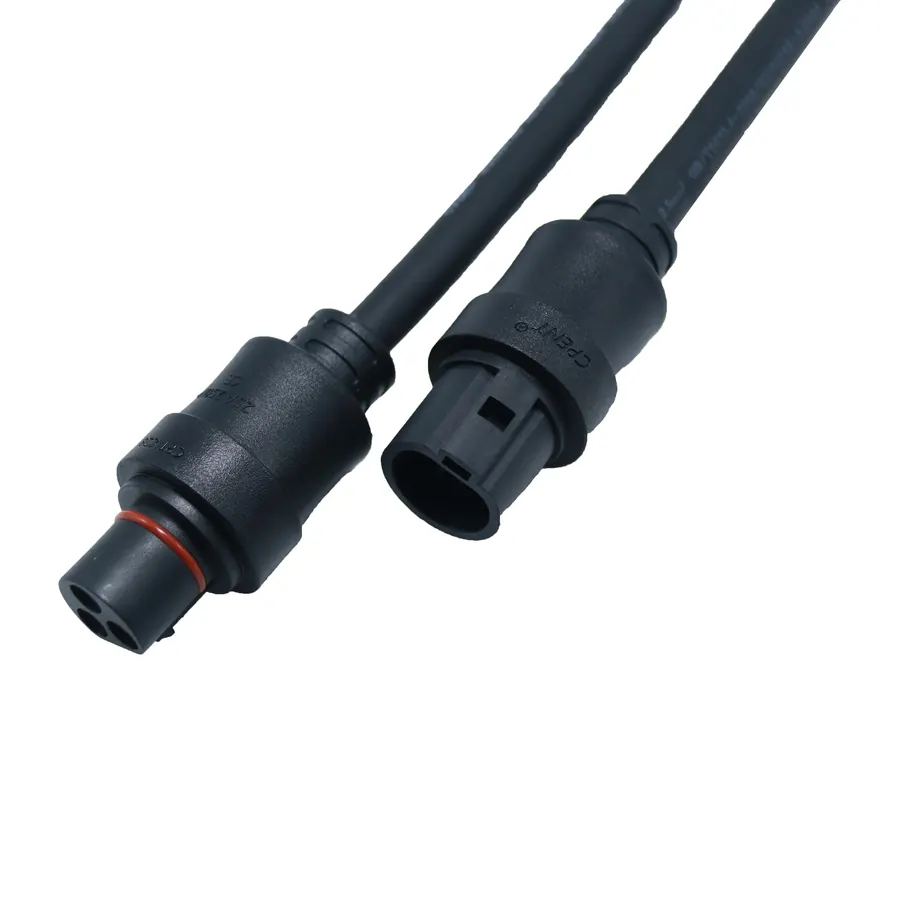

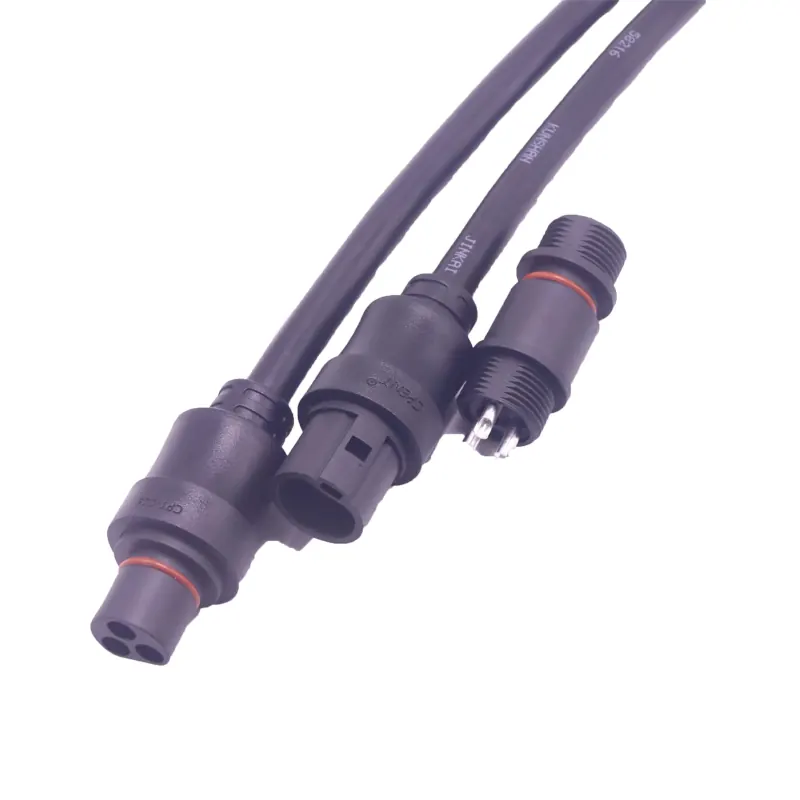

C28 Pre-Moulded Waterproof AC Connector (25 A, IP65)
Model CPT-C28 · Solar & Waterproof
CE (EN 61984)
Pre-moulded 25 A connector for higher-current micro-inverter and energy-storage AC links, CE-LVD assessed to EN 61984.
Specifications
| Model | CPT-C28 |
|---|---|
| Standard | Manufacturer standard PPP59015A |
| Rated voltage | 300 V |
| Rated current | 25 A |
| Markets | Global |
| Poles | 2P+E |
| Contact resistance | ≤ 0.5 mΩ |
| Power-frequency withstand | 4000 V AC |
| Ingress protection (mated) | IP65 |
| Flammability | UL94 V-0 |
| Ambient temperature | −40 °C to +85 °C |
| Wire range | 0.75–2.5 mm² / 18–12 AWG |
| Housing | PVC + PA |
| Contacts | Brass, nickel-plated |
| Approvals | CE (EN 61984) |
Approval scope and cable options differ by model. Tell us the destination market and we will confirm the exact certificate and configuration. Custom length, colour, moulded logo, labels and packaging are available.
