M25 Waterproof Connector with Panel Socket (25 A, IP68)
Model CPT-M25 · Solar & Waterproof

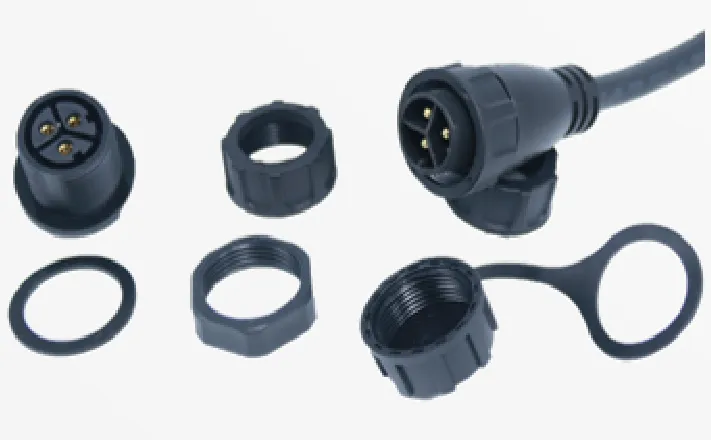

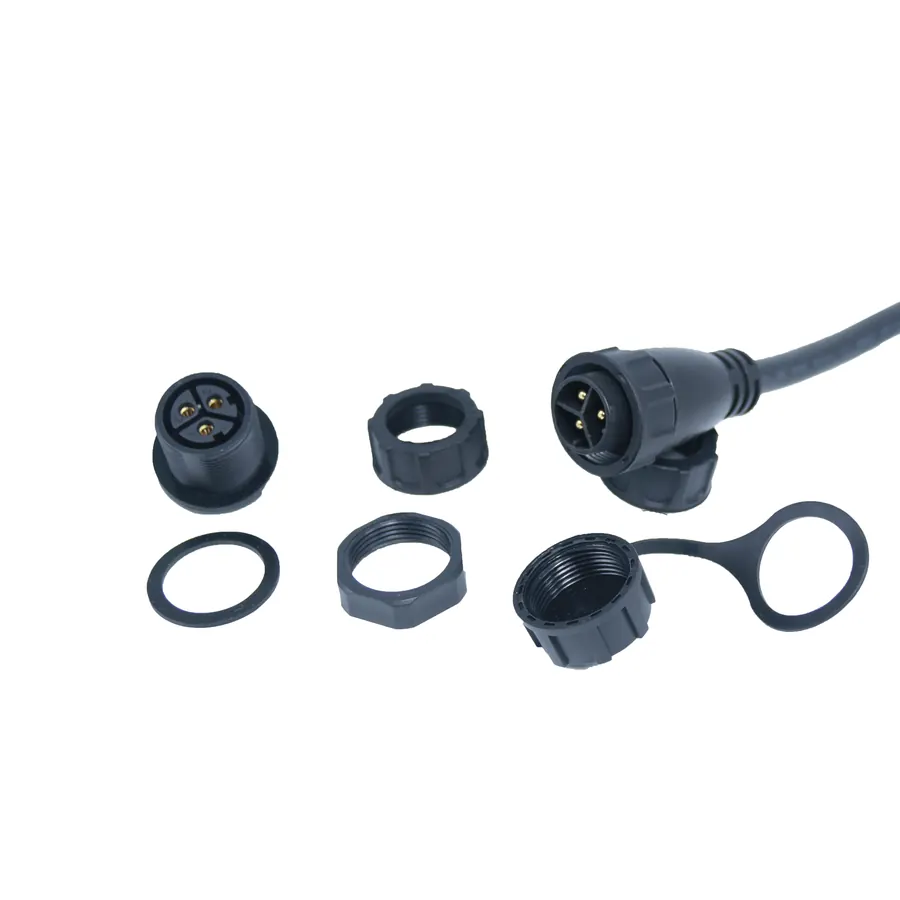

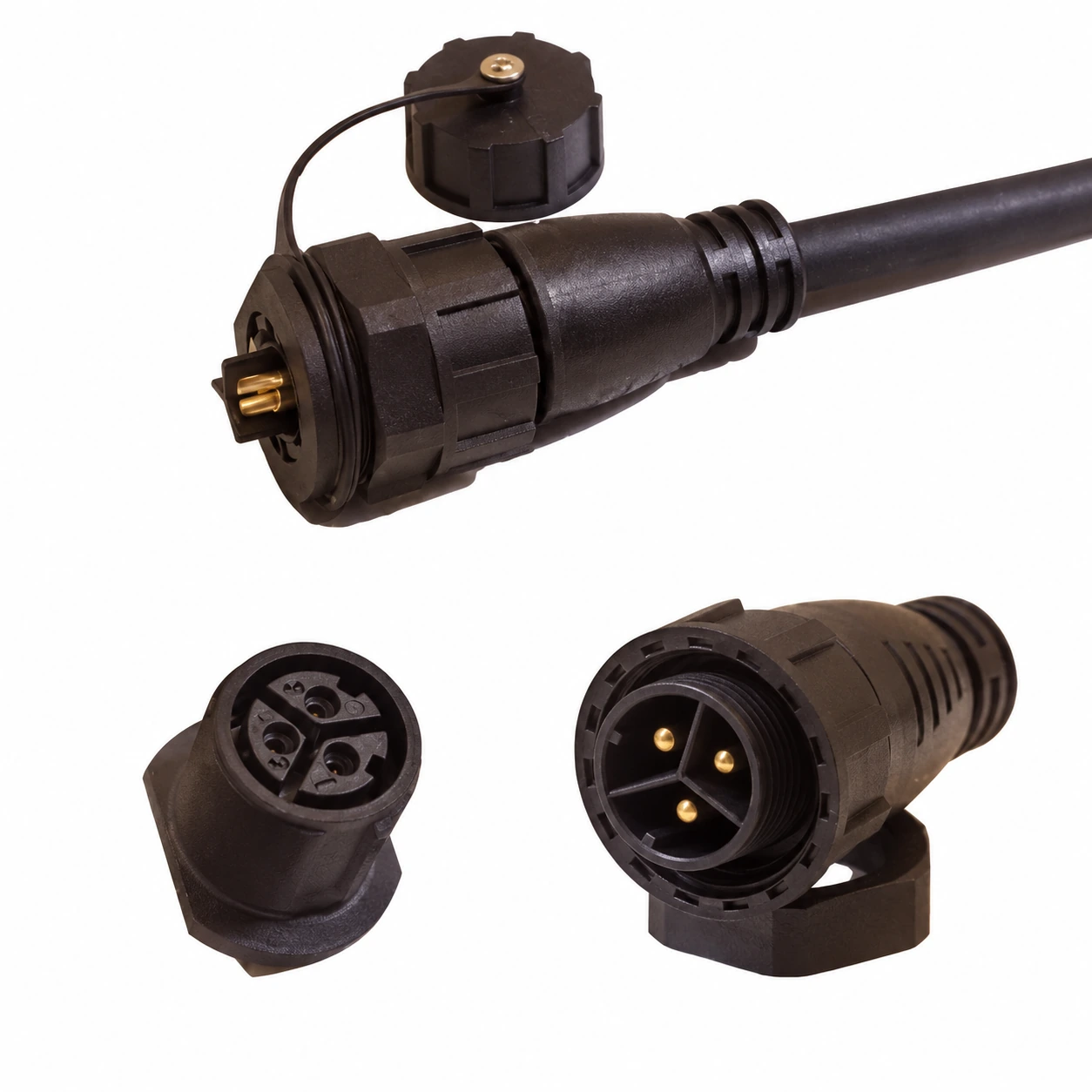

Pre-moulded 25 A plug with a matching panel-mount socket, sealing ring and dust cap, for inverter and battery enclosures.
Specifications
| Model | CPT-M25 |
|---|---|
| Standard | Manufacturer standard PPP59015A |
| Rated voltage | 300 V |
| Rated current | 25 A |
| Markets | Global |
| Poles | 2P+E |
| Contact resistance | ≤ 0.5 mΩ |
| Power-frequency withstand | 4000 V AC |
| Ingress protection (mated) | IP67 / IP68 |
| Flammability | UL94 V-0 |
| Ambient temperature | −40 °C to +85 °C |
| Wire range | 0.75–2.5 mm² / 18–12 AWG |
| Housing | PVC + PA |
| Contacts | Brass, nickel-plated |
| Includes | Panel nut, sealing ring and dust cap |
| Approvals | On request for your market |
Approval scope and cable options differ by model. Tell us the destination market and we will confirm the exact certificate and configuration. Custom length, colour, moulded logo, labels and packaging are available.
